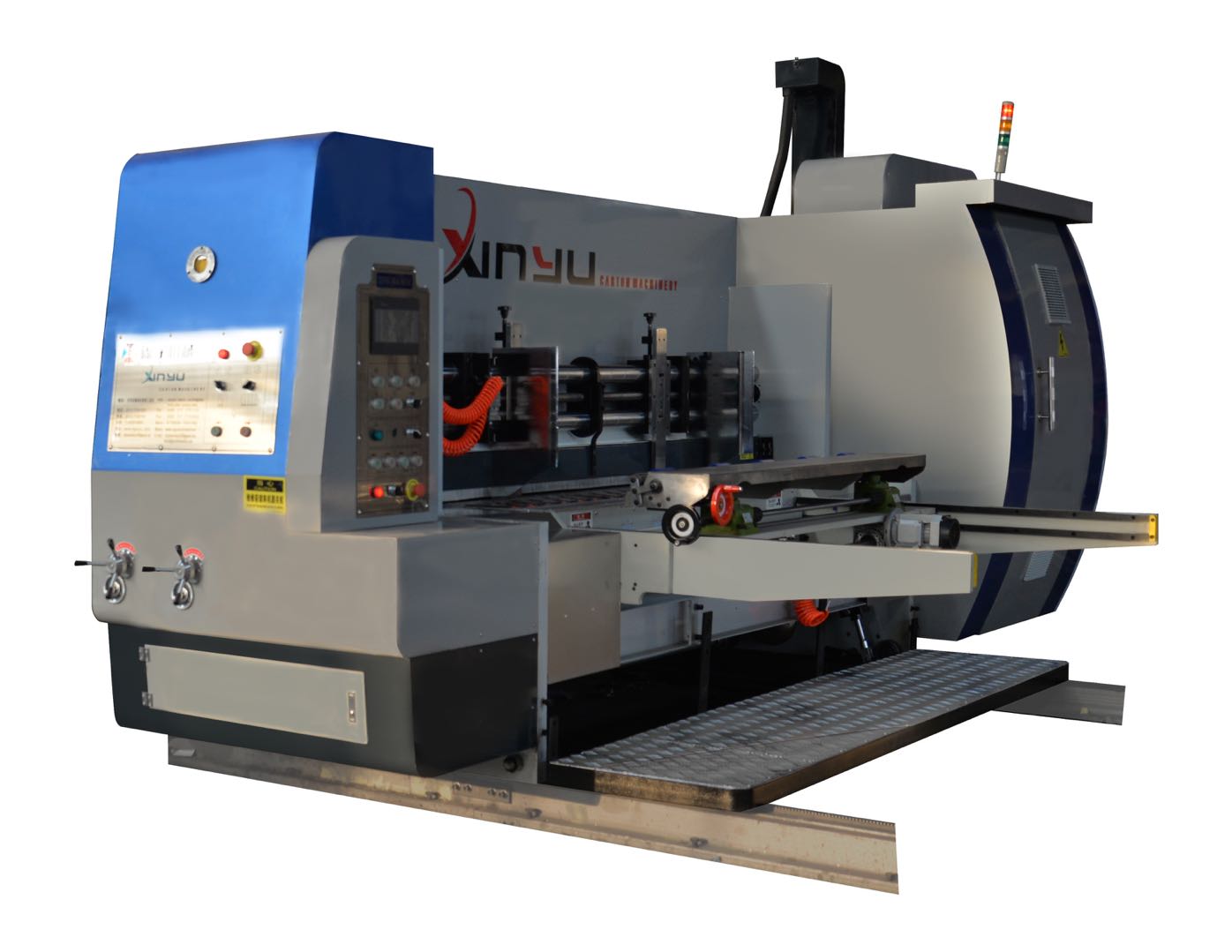

高清真空吸附印刷圓壓圓模切機

前緣送紙部LESS-PRESSURE LEAD EDGE FEEDER UNIT
1：雙膠軸輕壓系統設計，有效減輕對紙板的破壞。在滿版印刷時表現更為突出
The double rubber feeding roller less pressure system design effectively reduces the damage to the cardboard. More beautiful in full-page printing.
2：送紙膠軸采用快速換軸設計，簡單操作即可更換膠軸
The paper feed rubber roller adopts a quick shaft change design, and the rubber roller can be replaced by simple operation.
3：除塵系統，去除靜電裝置，毛刷除塵以及強力變頻風機，并配合粘輥除塵，使得除塵效果佳
Dust removal system, Electrostatic removal device, brush dust removal and powerful inverter fan, combined with the dust removal of the sticky roller, the dust removal effect is optimal.
4：前緣部裝有17寸工業攝像屏，方便機器前方操作工觀察清廢機堆碼機運行狀態，及時調整
It is equipped with a 17-inch industrial camera screen, which is convenient for the operator in front of the machine to observe the running status of the blanking machine stacking machine and adjust it in time.

印刷部 PRINTING UNIT ( vacuum transfer&CERAIMC ROLLER &DOCTOR BLADE TYPE)
1：整機采用先進的真空吸附傳送方式，風量傳送紙板，優點：紙板傳遞平穩，其印刷套色更為精準/ 風箱風門可根據紙板小中大規格，進行自動調整。保證了輕薄紙板，彎曲紙板以及低品質紙板的傳送
The whole machine adopts advanced vacuum adsorption transmission system,Advantages: smooth transfer of paperboard, more accurate printing coloring.
2：The printing unit adopts a ceramic roller and doctor blade.The ceramic roller LPI can be selected from 300-800. The wear resistance of the ceramic anilox roller is more than ten times that of the conventional hard chrome-plated roller.
3：氣囊式刀腔相對來說能延長陶瓷輥的使用壽命，加上采用塑料刮刀片，能很好的延緩陶瓷輥的磨損速度，開放式結構還不容易使陶瓷輥產生劃痕。
The doctor blade can extend the service life of the ceramic roller relatively, and the plastic scraper blade can well delay the wear speed of the ceramic roller, and the open structure is not easy to damage ceramic roller.
4：整機所有操作均實現觸摸屏全自動調節，間隙壓力調節部分（主要為膠軸與印板滾筒之間的間隙調節）大大減少人工的使用；根據紙板的厚度印刷版的厚度，對印刷滾筒與風向之間的壓力自動調節。
The whole operation of the whole machine realizes the automatic adjustment on the touch screen. The pressure adjustment part greatly reduces the manual use; according to the thickness of the printing plate, the printing cylinder and the wind direction The pressure between the two is automatically adjusted.
5：印刷套印精度可達±0.5MM
Printing color register precision is ±0.5MM.

烘干部DRYER UNIT
1：紅外線干燥系統，烘干支架氣動升降，便于印刷過程維護工作
Infrared drying system, drying bracket pneumatic lifting, easy to print process maintenance work.
2：紅外線加熱系統，溫度上升迅速溫度，每組加熱功率為60KW
Infrared heating system, the temperature rises rapidly and the heating power of each group is 60KW.
3：溫度恒溫控制，可采用分段加熱，節省電加熱功率
Temperature constant temperature control, sectional heating can be used to save electric heating power.
4：溫度報警，溫度超溫時自動報警
Temperature alarm, automatic alarm when temperature is over temperature.
5：冷風對流循環，提高烘干效果，降低烘干加熱功率
Cold air convection circulation, improve drying effect, reduce drying heating power.
6：烘干系統自動感應，根據機器速度，自動調節溫度，速度快時，烘干溫度自動提升。
The drying system automatically senses the temperature according to the speed of the machine. When the speed is fast, the drying temperature is automatically increased.

上光部VARNISH UNIT
同印刷部 SAME AS THE PRINTING UNIT

模切部 DIE CUTTER
1：德國科比獨立伺服驅動
German Keb independent servo drive.
2：速差自動補償功能把膠墊滾筒因修復后產生的線速度變化自動補償
The automatic differential compensation function automatically compensates the anilx roller for the linear velocity change caused by the repair.
3：壓線預壓自動觸摸屏調節
Pre-creasing and creasing is automatically adjust on the touch screen.
4：模切部安全裝置采用施耐德聯鎖裝置，開門即可斷電，保護了操作人員的安全
Die cutter unit is equipped with Schneider lock system ,when open the door can cut off the power supply ,it can protect the operators safety.

電氣部分 Electrical parts
1：本機電氣使用法國施耐德，開關電源為臺灣明緯，繼電器為日本歐姆龍
This machine uses all French electric Schneider, the switching power supply is Taiwan Meanwell , the relay is Japan Omron.
2：觸摸屏，變頻器，伺服驅動為臺灣臺達
Touch screen, frequency converter, servo drive for Taiwan Delta.
3：電機為瑞士ABB
The motor is Swiss ABB.
4：電氣部分為人性化操作，安全設施保護操作工的安全
The electrical part is humanized, and the safety facilities greatly protect the safety of the operator.
